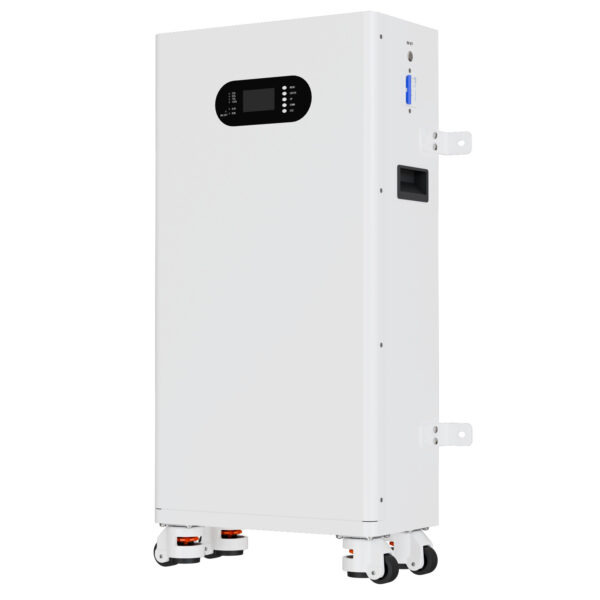

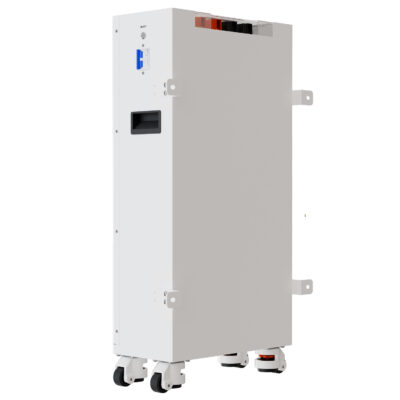

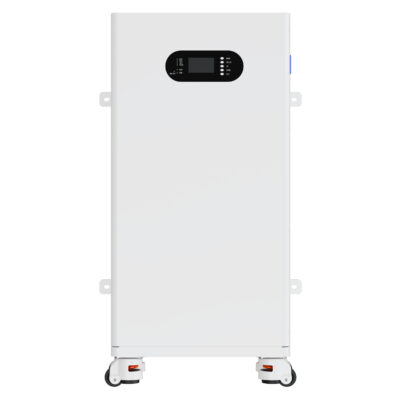

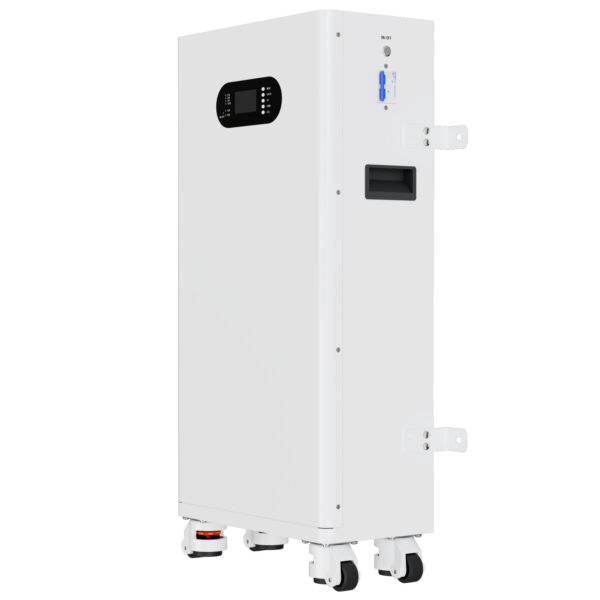

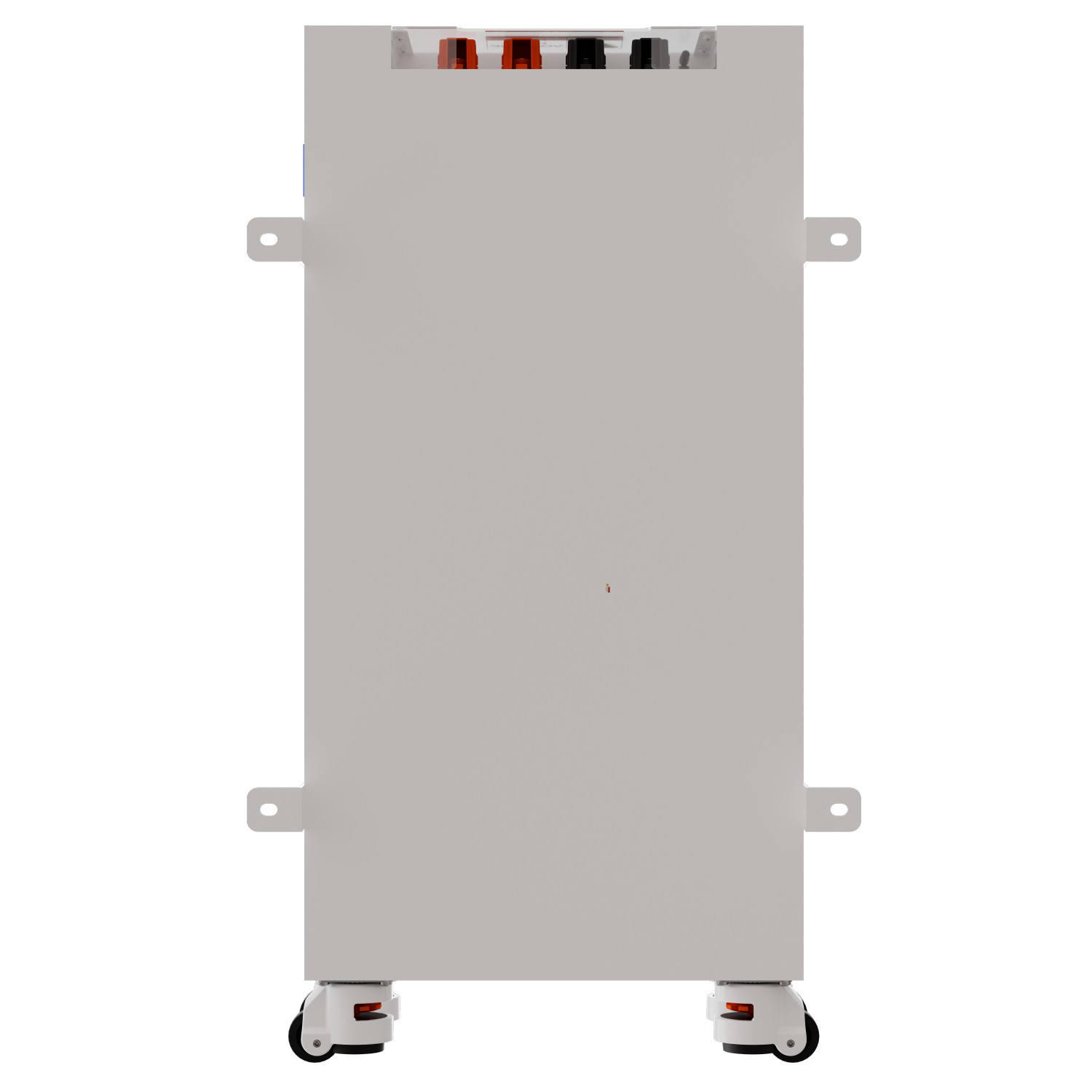

ES-BOX36 MAX Wall Mounted Battery 16 kWh 51.2V 314Ah
Safe and Stable:
1. Built-in battery management system with multiple protections;
2. Real-time data monitoring via communication function.
Flexible and Convenient:
1. Simple design and fast debugging speed;
2. Support for multiple installation schemes, easy to install.
3. Compatible with multiple inverter brands.
Intelligent Operation and Management:
1. Remote operation and maintenance to improve operational efficiency;
2. Remote diagnostic upgrade via OTA.
High Performance:
1. High consistency. Low internal resistance ensures consistent battery discharge;
2. High capacity and charge and discharge rates.
Product quality installation guarantee
- All-round after-sales service
- Remote online technical support
- Diversified solution reference
Description
| Product Model | ES-BOX36 PLUS | ES-BOX36 MAX |
|---|---|---|
| Nominal Power | 10.24 kWh | 16 kWh |
| Nominal Voltage | 51.2 V | 51.2 V |
| Nominal Capacity | 200 Ah | 314 Ah |
| Cell Type | LFP | LFP |
| Standard Charging Voltage | 56 V | 56 V |
| Maximum Discharge Current | 150 A | 200 A |
| Discharge Cut-Off Voltage | 44.8 V | 44.8 V |
| Parallel Function | Supports 16 parallel modules | Supports 16 parallel modules |

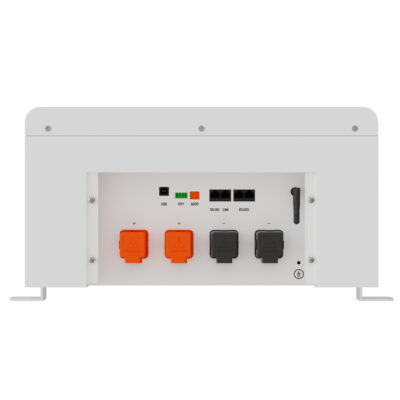

| Communication Interface | RS485, RS232, CAN (optional) | RS485, RS232, CAN (optional) |
| Cycle Life* | ≥6000 cycles (80% DOD) | ≥6000 cycles (80% DOD) |
| Charging Temperature Range | 0~65°C | 0~65°C |
| Discharging Temperature Range | -20~65°C | -20~65°C |
| Certification | UL/TUVIEC62619/EMC/CE/MSDS/UN38.3 | UL/TUVIEC62619/EMC/CE/MSDS/UN38.3 |
| Dimensions | 650*480*238 mm | 880*460*235 mm |
| Weight | 85 kg | 135 kg |
| Installation Method | Wall-mounted/Floor-mounted | Wall-mounted/Floor-mounted |
| Wi-Fi Function | Yes, with Wi-Fi | Yes, with Wi-Fi |
